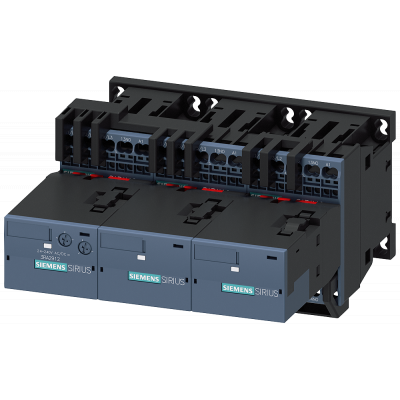

Contactor assembly for star-delta (wye-delta) start AC3, 11 kW/400 V 230 V AC, 50/60 Hz, 3-pole S00

СБОРКА ПО СХЕМЕ "ЗВЕЗДА-ТРЕУГОЛЬНИК" С ЛОГ., AC3, 11КВТ/400V AC 230V, 50/60 ГЦ, 3-ПОЛ., ТИПОРАЗМЕР S00, ПРУЖИННЫЕ КЛЕММЫ ЭЛ. И МЕХ. ВЗАИМНАЯ БЛОКИРОВКА, 1НО ИНТЕГР. В СЕТЕВОЙ КОНТ., 1НО ИНТЕГР. В КОНТ. "ЗВЕЗДЫ", 1НО ИНТЕГР. В КОНТ. "ТРЕУГОЛЬНИКА", Contactor assembly for star-delta (wye-delta) start SIRIUS 3RA24 for the soft starting of three-phase asynchronous motors. The 3RA24 contactor assembly for star-delta (wye-delta) starting is a proven and factory-fitted combination of three 3RT2 contactors which are already fully wired and interlocked both mechanically and electrically. The function module with integrated control logic and time setting, which is also included, replaces the complete wiring in the control circuit. They are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. The 3RA24 contactor assemblies for star-delta (wye-delta) starting are available with AC and DC operation in sizes S00 to S3. They are offered with screwor spring-loaded terminals for mounting on DIN rails or screw mounting. Furthermore, versions are available for connection to IO-Link or AS-Interface. The accessories of the 3RT2 contactors are standard for all sizes and can also be used for the contactor assemblies. The 3RA24 contactor assemblies for star-delta (wye-delta) starting will succeed the proven 3RA14 series. Simple, efficient and always up to date - SIRIUS modular system.

Параметры

Function	Star-delta contactor
Rated operation power at AC-3, 400 V	11.0
Rated operation current Ie at AC-3, 400 V	25
Rated control supply voltage Us at AC 50HZ	230
Rated control supply voltage Us at AC 60HZ	230
Rated control supply voltage Us at DC	-
Degree of protection (IP)	IP20
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Degree of protection (NEMA)	Other
Rated operation power NEMA	-
