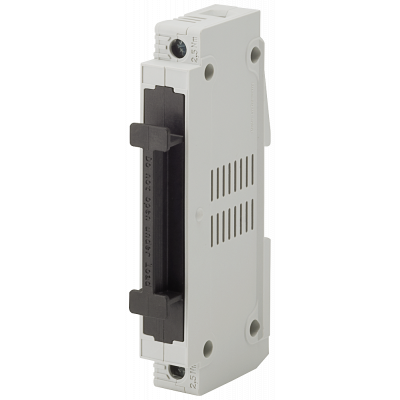

SENTRON, cylindrical fuse holder, 10 x 85 mm, 1-pole, In: 32 A, Un AC: 1500 ...

ДЕРЖАТЕЛЬ ПРЕДОХРАНИТЕЛЕЙ PV ТР 10X85 1500V D.C. 32A ДЛЯ ФОТОВОЛЬТАИЧЕСКИХ ПРИМЕНЕНИЙ Fuses for stringent requirements in photovoltaic applications. Siemens photovoltaic fuses are especially designed for protecting PV modules and ensure a high level of plant availability over the entire life of the PV system. The fuses have a high DC rated voltage and withstand the greatest temperature fluctuations without damage. All Siemens photovoltaic fuse systems therefore comply with the standard IEC 60269-6. The photovoltaic fuses are characterized primarily by: 1. Reliable protection of the modules and the module connection cables in the event of reverse currents. 2. Compliance with the UL standard UL 2579 (for IEC cylindrical fuses). 3. Safe tripping in case of residual currents and therefore reduction of the risk of fire due to DC electric arcs. 4. Safe separation when the fuse holder/fuse base is open. 5. Long service life despite frequent and very variable load currents. www.siemens.com/fuses. Siemens offers a comprehensive portfolio of protection, switching, metering and monitoring devices, distribution systems as well as switches and socket outlets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Nominal voltage	1500
Mounting method	DIN rail
Lockable	Нет
Built-in depth	64.0
Number of poles	1
Width in number of modular spacings	1.3
Degree of protection (IP)	IP20
Concurrently switching N-neutral	Нет
Optical defect indication	Нет
For fuse size	10x85 mm
