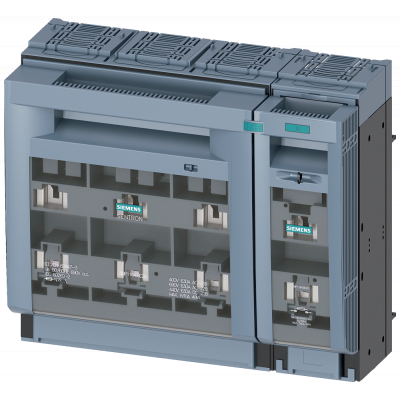

SENTRON, предохранительный Разъединитель 3NP1, 4-pole, NH3, 630 A, for 60mm 8US busbar system, рамочные клеммы, cover level 32/70 mm cover level 32/70
760.70€
Включая НДС
Артикул: 3NP1164-1BC20
SENTRON, предохранительный Разъединитель 3NP1, 4-pole, NH3, 630 A, for 60mm 8US busbar system, рамочные клеммы, cover level 32/70 mm cover level 32/70 mm
Параметры
| Cable entry | Other |
| Rated permanent current Iu | 630.0 |
| Number of poles | 4 |
| Conditioned rated short-circuit current Iq | 50.0 |
| Degree of protection (IP), front side | IP40 |
| Suitable for fuses | NH2, NH3 |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Frame clamp |
| Version as emergency stop installation | Нет |
| Type of control element | Cover grip |
| Version as main switch | Нет |
| Version as safety switch | Да |
| Rated operation power at AC-23, 400 V | - |
| Rated short-time withstand current lcw | - |
| Suitable for ground mounting | Нет |
| Suitable for front mounting 4-hole | Нет |
| Suitable for busbar mounting | Да |
| Max. rated operation voltage Ue AC | 690 |
| With error protection | Нет |
| Motor drive optional | Нет |
| Position control element | Front side |
| Equipped with connectors | Нет |
