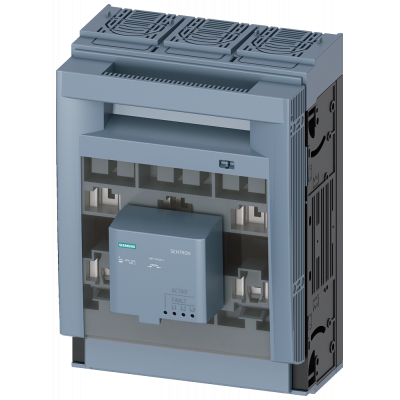

SENTRON, предохр. выключ. разъединитель 3NP1, 3-пол., NH2, 400 A, для установка на монтажную плату, плоская клемма, мониторинг предохр. электронный EF
323.90€
Включая НДС
Артикул: 3NP1153-1DA14
SENTRON, предохр. выключ. разъединитель 3NP1, 3-пол., NH2, 400 A, для установка на монтажную плату, плоская клемма, мониторинг предохр. электронный EFM15, cover level 70mm
Параметры
| Cable entry | Other |
| Rated permanent current Iu | 400.0 |
| Number of poles | 3 |
| Conditioned rated short-circuit current Iq | 80.0 |
| Degree of protection (IP), front side | IP40 |
| Suitable for fuses | NH1, NH2 |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Rail connection |
| Version as emergency stop installation | Нет |
| Type of control element | Cover grip |
| Version as main switch | Нет |
| Version as safety switch | Да |
| Rated operation power at AC-23, 400 V | - |
| Rated short-time withstand current lcw | - |
| Suitable for ground mounting | Да |
| Suitable for front mounting 4-hole | Нет |
| Suitable for busbar mounting | Нет |
| Max. rated operation voltage Ue AC | 690 |
| With error protection | Да |
| Motor drive optional | Нет |
| Position control element | Front side |
| Equipped with connectors | Нет |
