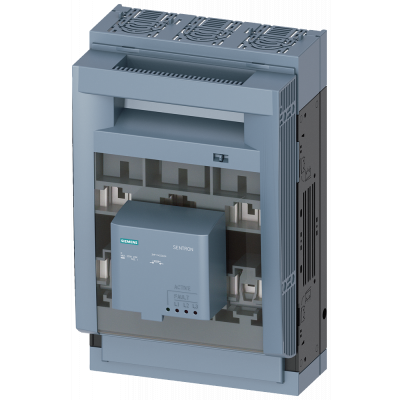

SENTRON, предохр. выключ. разъединитель 3NP1, 3-пол., NH1, 250 A, для установка на монтажную плату, рамочная клемма, мониторинг предохр. электронный E
288.96€
Включая НДС
Артикул: 3NP1143-1DA24
SENTRON, предохр. выключ. разъединитель 3NP1, 3-пол., NH1, 250 A, для установка на монтажную плату, рамочная клемма, мониторинг предохр. электронный EFM15, cover level 70mm
Параметры
| Cable entry | Other |
| Rated permanent current Iu | 250.0 |
| Number of poles | 3 |
| Conditioned rated short-circuit current Iq | 80.0 |
| Degree of protection (IP), front side | IP40 |
| Suitable for fuses | NH0, NH1 |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Frame clamp |
| Version as emergency stop installation | Нет |
| Type of control element | Cover grip |
| Version as main switch | Нет |
| Version as safety switch | Да |
| Rated operation power at AC-23, 400 V | - |
| Rated short-time withstand current lcw | - |
| Suitable for ground mounting | Да |
| Suitable for front mounting 4-hole | Нет |
| Suitable for busbar mounting | Нет |
| Max. rated operation voltage Ue AC | 690 |
| With error protection | Да |
| Motor drive optional | Нет |
| Position control element | Front side |
| Equipped with connectors | Нет |
