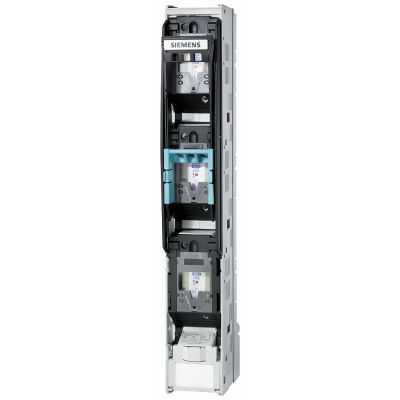

Fuse switch disconnector, in-line design, 3-pole, NH4a, 1250 A, for ...
994.56€
Включая НДС
Артикул: 3NJ5643-0BB00
IN-LINE ПРЕДОХРАНИТЕЛЬНЫЙ РАЗЪЕДИНИТЕЛЬ 1-ПОЛЮСА SWITCHABLE, ТИПОРАЗМЕР 4A, I=1250A FLAT-ТИП TERMINAL M16 X 60
Параметры
| Model | Fuse switch disconnector |
| Rated permanent current Iu | 1250.0 |
| Number of poles | 3 |
| Distance between rail centre, 50 mm | Нет |
| Distance between rail centre, 40 mm | Нет |
| Distance between rail centre, 60 mm | Нет |
| Conditioned rated short-circuit current Iq | - |
| Construction size fuse insert | NH4a |
| Distance between rail centre, 100 mm | Нет |
| Distance between rail centre, 185 mm | Да |
| Type of electrical connection of main circuit | Rail connection |
| Double interrupting | Нет |
| Max. rated operation voltage Ue AC | 690 |
| Release indication | - |
