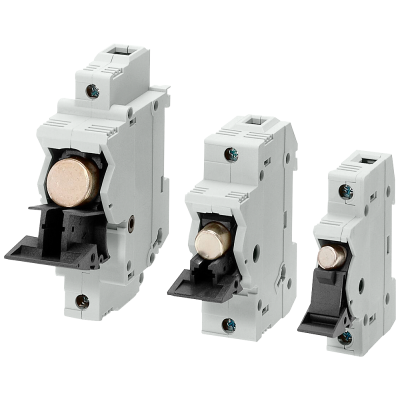

SITOR fuse switch 14 x 51, up to 50 A, 690 V AC

ВЫКЛЮЧАТЕЛЬ-РАЗЪЕДИНИТЕЛЬ SITOR 1P 14X51, UP TO 50 A, 690 V AC SITOR 3NE and 3NC semiconductor fuses protect power semiconductors from the effects of short circuits. As an important element of the SENTRON protective component line for electronic installations, the SITOR fuse system from Siemens provides effective protection for personnel, equipment and plants with reliable shutdown in the event of an overload or short circuit. The area of application also includes frequency converters with fuses in the input circuit and in the DC link and also UPS systems and soft-starters for motors. Key features of the Siemens SITOR fuses: 1. Extremely fast-acting switch-off characteristic compared to conventional LV HRC fuses. 2. Power semiconductors are also reliably protected in the event of a short-circuit. 3. The Siemens quality standard ensures very good characteristic curve accuracy. 4. SITOR cylindrical fuses are approved in accordance with IEC and UL and largely also CCC and can therefore be used worldwide. 5. In some cases suitable for installation in LV HRC fuse bases, in LV fuse switch disconnectors and switch disconnectors with fuses. www.siemens.com/fuses. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution boards as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Cable entry	Other
Rated permanent current Iu	50.0
Number of poles	1
Conditioned rated short-circuit current Iq	100.0
Degree of protection (IP), front side	Other
Suitable for fuses	Other
Motor drive integrated	Нет
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	Нет
Type of control element	Other
Version as main switch	Нет
Version as safety switch	Да
Rated operation power at AC-23, 400 V	-
Rated short-time withstand current lcw	-
Suitable for ground mounting	Нет
Suitable for front mounting 4-hole	Да
Suitable for busbar mounting	Нет
Max. rated operation voltage Ue AC	690
With error protection	Нет
Motor drive optional	Нет
Position control element	Front side
Equipped with connectors	Нет
