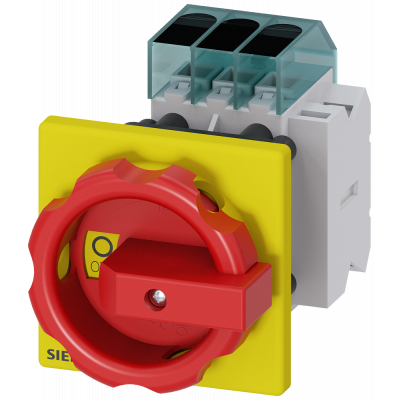

Switch disconnector 3LD3, Iu 32 A main switch 3-pole + rated operational power.
63.58€
Включая НДС
Артикул: 3LD3254-1TK53
Главный выключатель 3-пол., Iu 32A рабоч.коммутация при AC-23 A при 400В 11,5кВт фронт уст. базовая устан. с центр.отверст. 22,5мм поворот.ручка красный/желтый 66 x66мм с доп. конт. 1NO+1NC The 3LD main and emergency off switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD3 disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD3 are also ideal for control panels, in particular for applications in small machines (for example saws, compressors, pumps, concrete mixers, drills, mills, and woodworking machinery) Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile thanks to local approvals. 3. One mechanical size for five electrical sizes. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 63 A with lockable rotary operating mechanism. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Параметры
| Rated operation power at AC-3, 400 V | 9.5 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated permanent current Iu | 32.0 |
| Number of poles | 3 |
| Rated operating voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Degree of protection (IP), front side | IP65 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | Да |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Frame clamp |
| Version as emergency stop installation | Да |
| Type of control element | Short thumb-grip |
| Version as main switch | Да |
| Version as safety switch | Да |
| Version as maintenance-/service switch | Да |
| Rated operation power at AC-23, 400 V | 11.5 |
| Rated short-time withstand current lcw | 0.5 |
| Colour control element | Red |
| Suitable for ground mounting | Нет |
| Suitable for front mounting 4-hole | Нет |
| Suitable for front mounting centre | Да |
| Suitable for distribution board installation | Нет |
| Suitable for intermediate mounting | Нет |
| Max. rated operation voltage Ue AC | 690 |
| Motor drive optional | Нет |
| Voltage release optional | Нет |
| Device construction | Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V | 32 |
| Switching power at 400 V | - |
| Version as reversing switch | Нет |
| Rated permanent current at AC-23, 400 V | 22 |
| Degree of protection (NEMA) | Other |
