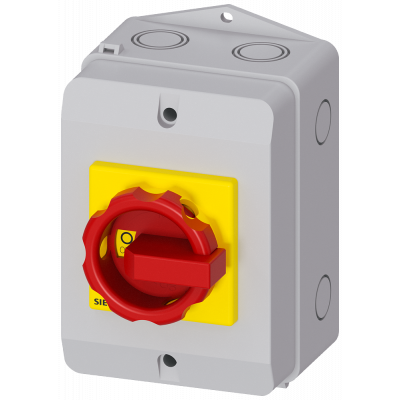

3LD switch disconnector, emergency stop switch, 3-pole, Iu: 16 A, operating power ...

3-P. ГЛАВНЫЙ/АВАРИЙНЫЙ ВЫКЛЮЧАТЕЛЬ IU=16, P/AC-23A AT 400V=7.5KW 1НO+1НЗ, 1N КЛЕММА +1PE КЛЕММА ПЛАСТИКОВЫЙ КОРПУС , IP65 ПОВОРОТНАЯ РУКОЯТКА КРАСНАЯ/ЖЕЛТАЯ The 3LD main and emergency switching-off switch as a maintenance switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD have proven themselves in many fields, particularly in processing machines in mechanical and conveyor system engineering, and in the chemical sector and food and beverage industries. Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile and global applications possible thanks to international IEC, UL and marine approvals. 3. Degree of protection IP65 with encapsulated housing for outdoor applications. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 250 A with lockable rotary operating mechanism. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Rated operation power at AC-3, 400 V	5.5
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Rated permanent current Iu	16.0
Number of poles	3
Rated operating voltage	-
Conditioned rated short-circuit current Iq	-
Degree of protection (IP), front side	IP65
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	Да
Motor drive integrated	Нет
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	Да
Type of control element	Short thumb-grip
Version as main switch	Да
Version as safety switch	Да
Version as maintenance-/service switch	Да
Rated operation power at AC-23, 400 V	7.5
Rated short-time withstand current lcw	0.34
Colour control element	Red
Suitable for ground mounting	Нет
Suitable for front mounting 4-hole	Нет
Suitable for front mounting centre	Да
Suitable for distribution board installation	Нет
Suitable for intermediate mounting	Нет
Max. rated operation voltage Ue AC	690
Motor drive optional	Нет
Voltage release optional	Нет
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	16
Switching power at 400 V	-
Version as reversing switch	Нет
Rated permanent current at AC-23, 400 V	16
Degree of protection (NEMA)	Other
