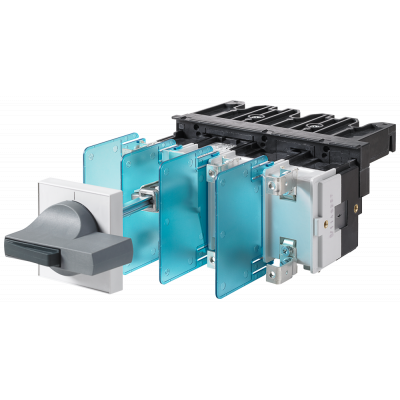

РАЗЪЕДИНИТЕЛЬ С ПРЕДОХРАНИТЕЛЯМИ НОВОГО ДИЗАЙНА IU=125A, UE=690V, 3-ПОЛЮСА ДЛЯ BS88-FUSE ДЛЯM A4 W.ISOLATING PLUG CONN.ДЛЯ MCC WITH DOOR DRIVE 8UC7 HA
1 327.87€
Включая НДС
Артикул: 3KM5230-1GJ01
РАЗЪЕДИНИТЕЛЬ С ПРЕДОХРАНИТЕЛЯМИ НОВОГО ДИЗАЙНА IU=125A, UE=690V, 3-ПОЛЮСА ДЛЯ BS88-FUSE ДЛЯM A4 W.ISOLATING PLUG CONN.ДЛЯ MCC WITH DOOR DRIVE 8UC7 HANDLE TI-GREY/BL.GREEN BASIC МАСКИРУЮЩАЯ РАМКА LIGHT GRAY
Параметры
| Rated operation power at AC-3, 400 V | - |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 125.0 |
| Number of poles | 3 |
| Rated operating voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Degree of protection (IP), front side | IP00 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | - |
| Interlockable | Да |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | - |
| Version as emergency stop installation | Нет |
| Type of control element | Other |
| Version as main switch | Да |
| Version as safety switch | Да |
| Version as maintenance-/service switch | Да |
| Rated operation power at AC-23, 400 V | 65.0 |
| Rated short-time withstand current lcw | - |
| Colour control element | Other |
| Suitable for ground mounting | - |
| Suitable for front mounting 4-hole | Нет |
| Suitable for front mounting centre | Нет |
| Suitable for distribution board installation | Да |
| Suitable for intermediate mounting | Да |
| Max. rated operation voltage Ue AC | 690 |
| Motor drive optional | Нет |
| Voltage release optional | Нет |
| Device construction | Built-in device plug-in technique |
| Rated permanent current at AC-21, 400 V | - |
| Switching power at 400 V | - |
| Version as reversing switch | - |
| Rated permanent current at AC-23, 400 V | 125 |
| Degree of protection (NEMA) | - |
