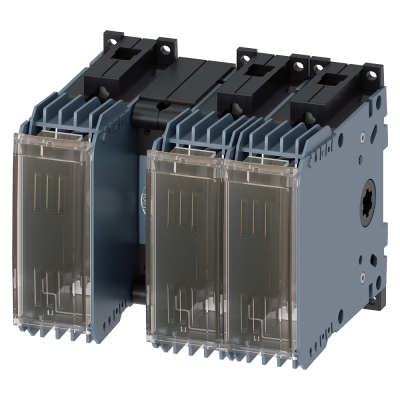

ПРЕДОХРАНИТЕЛЬНЫЙ ВЫКЛЮЧАТЕЛЬ-РАЗЪЕДИНИТЕЛЬ 63A, ТИПОРАЗМЕР 1, 3-ПОЛ FOR LV HRC ПРЕДОХРАНИТЕЛЬ ТИПОРАЗМЕР 000 ПЕРЕДН.УПРАВЛЕНИЕ ЦЕНТР БАЗОВЫЙ БЛОК БЕЗ
271.49€
Включая НДС
Артикул: 3KF1306-0MB11
ПРЕДОХРАНИТЕЛЬНЫЙ ВЫКЛЮЧАТЕЛЬ-РАЗЪЕДИНИТЕЛЬ 63A, ТИПОРАЗМЕР 1, 3-ПОЛ FOR LV HRC ПРЕДОХРАНИТЕЛЬ ТИПОРАЗМЕР 000 ПЕРЕДН.УПРАВЛЕНИЕ ЦЕНТР БАЗОВЫЙ БЛОК БЕЗ РУЧКИ РАМОЧНЫЕ КЛЕММЫ WITHOUT FUSES 3KF switch disconnector with fuses as main, EMERGENCY STOP or maintenance switch. Depending on their size, 3KF switch disconnectors with fuses enable a rated current between 32 and 800 A to be switched on and off. Furthermore, they fulfill a safety isolation function in all age circuits. 3KF switch disconnectors with fuses are optimized for complex applications in which LV HRC fuses are used. 1. Switch disconnectors with door coupling or direct operating mechanism in five sizes can be used in a variety of applications. 2. Simple retrofitting of functions possible thanks to an extensive range of accessories. 3. Reliable protection against electrical accidents by means of locking functions, touch protection and automatically interlocked fuse cover in the switched-on state. 4. Rugged technology with high short-circuit strength for high system availability. 5. Quick installation on the standard mounting rail with frame sizes up to 80 A. 6. Efficient engineering with extensive CAx data. 7. Reliable protection also for wind power plants up to 690 V + 10%. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Параметры
| Cable entry | - |
| Rated permanent current Iu | 63.0 |
| Number of poles | 3 |
| Conditioned rated short-circuit current Iq | 100.0 |
| Degree of protection (IP), front side | IP20 |
| Suitable for fuses | NH000, NH00 |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Frame clamp |
| Version as emergency stop installation | Да |
| Type of control element | Other |
| Version as main switch | Да |
| Version as safety switch | Да |
| Rated operation power at AC-23, 400 V | 30.0 |
| Rated short-time withstand current lcw | 2.5 |
| Suitable for ground mounting | Да |
| Suitable for front mounting 4-hole | Нет |
| Suitable for busbar mounting | Да |
| Max. rated operation voltage Ue AC | 690 |
| With error protection | Нет |
| Motor drive optional | Нет |
| Position control element | - |
| Equipped with connectors | Нет |
