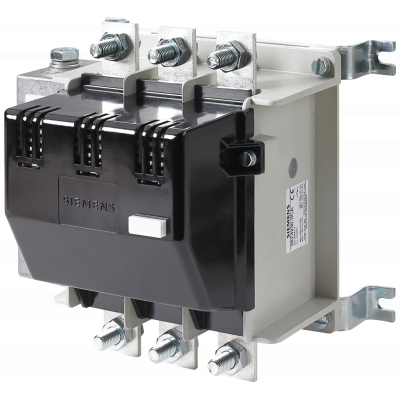

Switch disconnector 3-pole I=630 A, U=690 V rear rotary op. mech. without handle.
3 279.36€
Включая НДС
Артикул: 3KE4430-0CA
РАЗЪЕДИНИТЕЛЬ 3-ПОЛЮСА I=630A, U=690V, ЗАДНИЙ ПОВОРОТНЫЙ МЕХАНИЗМ БЕЗ РУКОЯТКИ
Параметры
| Rated operation power at AC-3, 400 V | - |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 630.0 |
| Number of poles | 3 |
| Rated operating voltage | - |
| Conditioned rated short-circuit current Iq | 50.0 |
| Degree of protection (IP), front side | IP00 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | - |
| Interlockable | Нет |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | - |
| Version as emergency stop installation | Да |
| Type of control element | Other |
| Version as main switch | Да |
| Version as safety switch | Да |
| Version as maintenance-/service switch | Да |
| Rated operation power at AC-23, 400 V | - |
| Rated short-time withstand current lcw | - |
| Colour control element | - |
| Suitable for ground mounting | Да |
| Suitable for front mounting 4-hole | Нет |
| Suitable for front mounting centre | Нет |
| Suitable for distribution board installation | Нет |
| Suitable for intermediate mounting | Нет |
| Max. rated operation voltage Ue AC | 690 |
| Motor drive optional | Нет |
| Voltage release optional | Нет |
| Device construction | Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V | - |
| Switching power at 400 V | - |
| Version as reversing switch | - |
| Rated permanent current at AC-23, 400 V | 630 |
| Degree of protection (NEMA) | - |
