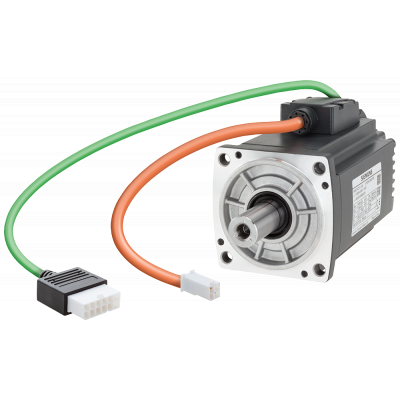

SIMOTICS S-1FL6 LI, 1AC/3AC 230V, 3.18 Nm, 3000 rpm

SIMOTICS S-1FL6 SUPPLY VOLTAGE 230V 3AC PN=1KW,NN=3000RPM M0=3,18NM,MN=3,18NM SHAFT HEIGHT 40MM ENCODER INCREMENTAL TTL 2500PPR WITH SHAFT KEY, TOLERANCE N WITHOUT HOLDING BRAKE PROTECTION CLASS IP65 WITH OIL SEAL MATCHING DRIVE SINAMICS V90 The SIMOTICS S-1FL6 LI servo motor is suitable for simple and highly dynamic applications in conjunction with the SINAMICS V90 servo converter. The motor can be combined with the SINAMICS V90 converter and the MOTION-CONNECT 300 connection system to create a powerful servo system with high functionality. The result is a seamless drive system. Wherever highly dynamic and precise motion sequences are demanded, a drive system comprising the SIMOTICS S-1FL6 and SINAMICS V90 is the first choice. Users benefit from the high dynamic response, accuracy and compact dimensions. The SIMOTICS S-1FL6 servo motor is a permanently excited synchronous motor designed for operation without external cooling. Heat is dissipated via the surface of the motor. Thanks to the use of a quick-release connector, the motors are quick and easy to install. The servo motor with a high dynamic response and a low moment of inertia (low-inertia motor) is available in four shaft heights and a braking performance of between 0.05 kW and 2.00 kW. The motor has IP65 degree of protection and natural cooling as standard. The servo motor covers the ranges of rated torque from 0.16 Nm to 6.37 Nm and rated speed from 3 000 rpm. In addition, the motor optionally has a TTL 2 500 ppr incremental encoder, a 21-bit single turn absolute encoder and a 20-bit Multiturn absolute encoder. The SIMOTICS S-1FL6 LI servo motor can be adapted to address specific user requirements by using various options, such as connectors, encoders and additional accessories. SIMOTICS – dynamic and precise.

Параметры

Model	-
Voltage type	-
Rated current	-
Rated voltage	-
Number of phases	-
Energy efficiency class	-
Construction type	-
Number of poles	-
Rated frequency	-
Operation temperature	-
Rated rotational speed at rated frequency	-
Rated performance at rated frequency	-
Degree of protection (IP)	-
Duty cycle	-
Frame size acc. IEC	-
Full-load efficiency	-
Starting current ratio	-
Starting torque ratio	-
Breakdown torque ratio	-
Voltage anti-condensation heater	-
Output power anti-condensation heater	-
With positive temperature coefficient resistor (PTC)	-
With resistance temperature detector (RTD)	-
Intrinsic safety (IS)	-
Overload capability	-
Cooling method	-
Shaft end type	-
Vacuum pressure impregnation (VPI)	-
Degree of protection (NEMA)	-
Suitable for frequency control	-
Bearing	-
Insulation class acc. IEC	-
With anti-condensation	-
Nominal torque	-
Power factor	-
