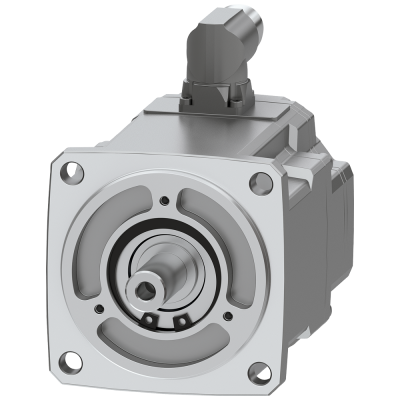

SIMOTICS S-1FK2 HD, SINAMICS S210 3AC 400V-480V, 1.27 Nm, 3000 rpm
709.88€
Включая НДС
Артикул: 1FK2104-4AF00-2SA0
SIMOTICS S-1FK2 HD Серводвигатель М0 = 1,27 Н · м PN = 0,4 кВт при нн = 3000 оборотов в минуту (380-480) PN = 0,2 кВт при нн = 1500 оборотов в минуту (200-240 В) Степень защиты IP64 Цилиндрический вал D14 х 30 мм Абсолютный датчик однооборотные 22-бит (кодер AS22DQC) С интерфейсом OCC Размер разъема М17, с возможностью вращения Servo motor SIMOTICS S-1FK2 for a wide range of uses in industrial environments. SIMOTICS S‑1FK2 servomotors are compact synchronous motors with a high dynamic performance that set themselves apart as a result of their high power density, degree of protection and overload capability. The motors are available in two variants: as "High Dynamic" variant (highest dynamic performance as a result of the low intrinsic moment of inertia for applications demanding a high dynamic performance with low moved masses) - and as "Compact" variant (precise and stable closed-loop control for medium up to large moved masses as a result of a medium intrinsic moment of inertia). SIMOTICS S‑1FK2 servomotors fully exploit their strengths in a system with the SINAMICS S210 converter and simple connection using the one cable connection (OCC): Advantages include the short control and positioning times, fast and precise correction of disturbing quantities as well as stable control with a high dynamic performance. The servo motors can be configured to address a wide range of requirements. For example with and without holding brake, IP64 or IP65 degree of protection, singleturn or multiturn absolute encoders - to name just a few. Further, the servomotors are available with a range of shaft heights extending from 20 to 100. A shaft sealing ring is available to achieve an IP65 degree of protection and for subsequent mounting at the motor or as spare part. SIMOTICS – the optimum motor for each and every motion control application.
Параметры
| Model | - |
| Voltage type | - |
| Rated current | - |
| Rated voltage | - |
| Number of phases | - |
| Energy efficiency class | - |
| Construction type | - |
| Number of poles | - |
| Rated frequency | - |
| Operation temperature | - |
| Rated rotational speed at rated frequency | - |
| Rated performance at rated frequency | - |
| Degree of protection (IP) | - |
| Duty cycle | - |
| Frame size acc. IEC | - |
| Full-load efficiency | - |
| Starting current ratio | - |
| Starting torque ratio | - |
| Breakdown torque ratio | - |
| Voltage anti-condensation heater | - |
| Output power anti-condensation heater | - |
| With positive temperature coefficient resistor (PTC) | - |
| With resistance temperature detector (RTD) | - |
| Intrinsic safety (IS) | - |
| Overload capability | - |
| Cooling method | - |
| Shaft end type | - |
| Vacuum pressure impregnation (VPI) | - |
| Degree of protection (NEMA) | - |
| Suitable for frequency control | - |
| Bearing | - |
| Insulation class acc. IEC | - |
| With anti-condensation | - |
| Nominal torque | - |
| Power factor | - |
